Overview

isdmtools is an R package that streamlines the preparation, visualization, and evaluation of multisource geospatial data for biodiversity modeling. Specifically engineered for Integrated Species Distribution Models (ISDMs) with a particular focus on the Bayesian framework, the package provides a unified suite of tools for managing presence-only, count, and presence-absence data. It ensures robust, reproducible workflows through dedicated tools for block cross-validation, suitability analysis and standardized model evaluation.

Installation

• You can install the latest development version of isdmtools directly from GitHub using the remotes package.

if (!require("remotes")) install.packages("remotes")
remotes::install_github("sodeidelphonse/isdmtools")

• Alternatively, if you are on Windows operating system and don’t have Rtools installed due to restricted internet access, you can download the binary build from our latest GitHub Releases and then install it with:

install.packages("C:/path/to/your/download/isdmtools_<version>.zip", repos = NULL, type = "win.binary")

where <version> is the version number (e.g., v0.4.0) of the release you downloaded and {C:/path/to/your/download/} is the path to the binary ".zip" file.

• For macOS or Linux platforms, you must compile the source code ("isdmtools_<version>.tar.gz") available from our latest GitHub Releases. Download the desired version and then install it with:

install.packages("/path/to/your/download/isdmtools_<version>.tar.gz", repos = NULL, type = "source")

where <version> is the version number of the release you downloaded and {/path/to/your/download/} is the path to the ".tar.gz" file.

Core Features

The package provides a set of core functions and classes to handle common tasks of data preparation, visualization and model evaluation:

• Resampling and Folds Diagnostics: Create a DataFolds object that bind multiple sf datasets and generate spatially-separated cross-validation folds using create_folds() constructor. This ensures the resulting models are robust to spatial autocorrelation. The key methods check_folds() and check_env_balance() operate on DataFolds to efficiently check the independence and environmental balance of created folds, respectively.

• Suitability Analysis: Standardize model predictions for consistent mapping and compute a final habitat suitability index. The suitability_index() function transforms raw integrated model predictions into a suitability score using the inverse of the complementary log-log transform (cloglog).

• Model Evaluation: Compute comprehensive evaluation metrics, including ROC-based and continuous-outcome metrics for each dataset using the compute_metrics() constructor. The package also handles dataset-weighted composite scores, providing a holistic view of model performance. Note that sample_background() is called internally to sample pseudo-absences for presence-only data. However, users can extract the BackgroundPoints object with the get_background() helper in order to visualize the generated pseudo-absences.

• Mapping: Visualize model predictions and final habitat suitability maps. The plotting method generate_maps() is designed to receive a formatted object from format_predictions() to provide a clear and informative map. It visualizes multiple variables of model predictions (e.g. mean, SD, and quantiles), providing an easy way to interpret models’ results. Users can customize the final ggplot2 object if needed.

• Statistical Validation: simulate_replicates() generate replicates of data ($y_{rep}$) from the posterior samples of the fitted model. compute_ppc_stats() calculates Pearson Chi-squared statistics and Bayesian $p$-values from the replicated data to assess model fit.

• Other Methods: The package includes the summary(), print() and plot() methods for most of the available data structures. These provide a concise summary and clear visualization of spatial data partition, folds’ diagnostics, and models’ evaluation and validation. Other methods are discussed in the package vignettes.

Usage Example

The core workflow of isdmtools involves creating a DataFolds object and then extracting specific folds for a modeling pipeline.

Data preparation

First, let’s load the package and create some dummy data.

library(isdmtools)
library(sf)
library(ggplot2)
library(dplyr)

# Set the random seed for reproducibility
set.seed(42)

# Presence-only data (e.g. Citizen science data)
presence_data <- data.frame(
  x = runif(100, 0, 4),
  y = runif(100, 6, 13),
) |>
  st_as_sf(coords = c("x", "y"), crs = 4326)

# Count data (e.g. species count from a structured design)
count_data <- data.frame(
  x = runif(50, 0, 4),
  y = runif(50, 6, 13),
  count = rpois(50, 5)
) |>
  st_as_sf(coords = c("x", "y"), crs = 4326)

# Create a list of datasets
datasets_list <- list(Presence = presence_data, Count = count_data)

Spatial partitioning

We can now create spatial folds using the default blocking engine.

# Create the DataFolds object
my_folds <- create_folds(datasets_list, k = 5, seed = 23)
print(my_folds)

# Visualize the folds
plot(my_folds)

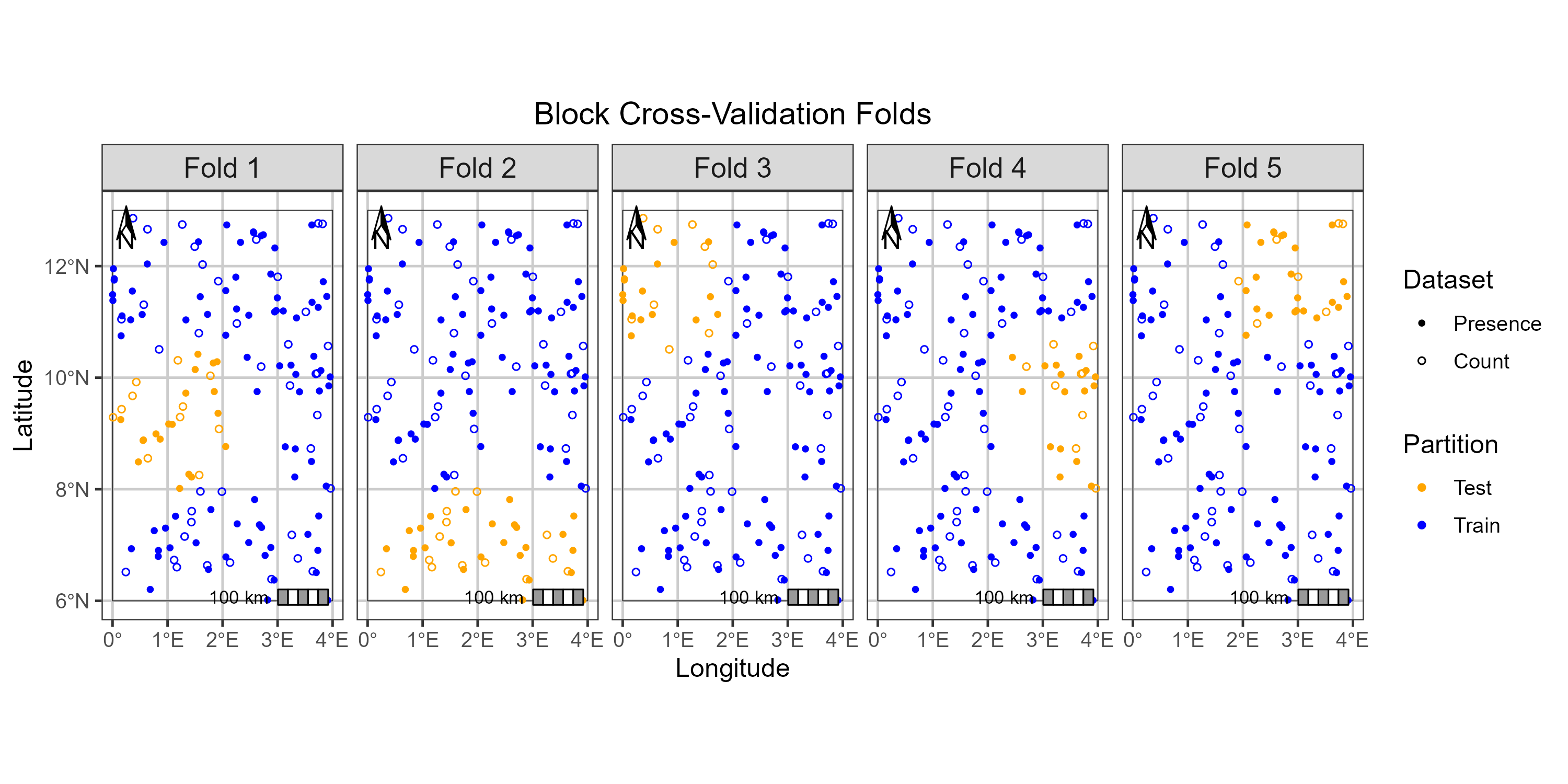

The figure above shows the block cross-validation folds.

Extract folds for an integrated modeling workflow

One can extract a specific fold to evaluate the integrated model and keep the remaining folds for its training.

# Extract the fold 3 for model evaluation
splits_fold_3 <- extaract_fold(my_folds, fold = 3)

# You can access both 'train' and 'test' sets and their corresponding datasets
 train_data <- splits_fold_3$train
 test_data <- splits_fold_3$test

Folds diagnostics

You can check spatial independence of folds using check_folds.

# Check spatial independence of folds using the default range rho (N/A)
geo_diag <- check_folds(folds, plot = TRUE)
print(geo_diag)
plot(geo_diag)

For a detailed introduction to the package, please see the Get started guide.

Contributing

• We welcome contributions! If you encounter an issue or have a feature request, please open an issue on the GitHub repository here.

• This project uses renv to manage package dependencies and ensure reproducibility. A contributor who wants to install all the necessary packages for this project can simply follow these steps:

  • Make sure you have the renv package installed:

  install.packages("renv")

  • With the project directory as your working directory, use renv to install all packages listed in the renv.lock file:

  renv::restore()

• Please note that the isdmtools project is released with a Contributor Code of Conduct. By contributing to this project, you agree to abide by its terms.

Citation

To cite this package in your research work, run the following command in your R session to generate the plain text and BiTex entry of the citation:

citation("isdmtools")

License

The isdmtools package is released under the MIT License.
